실수로 git pull 햇을때 로컬 되살리기



>[!warning] # 무조건 지켜야 하는 법칙(로컬을 살리기위해,협업을 위해)

> git pull 을 하기전에

> # **stash** 명령어로 로컬 저장!!

> - 반드시  를 해서 local의 변경사항을 저장하자!!!

>

> 하지 않는다면 되돌릴수없는 강을 건너게 된다...

Unity UI On GameObjectPostion



void DrawTest()

    {

        // Offset position above object bbox (in world space)

        float offsetPosY = target.transform.position.y;

        // Final position of marker above GO in world space

        Vector3 offsetPos = new Vector3(target.transform.position.x, offsetPosY, target.transform.position.z);

        // Calculate *screen* position (note, not a canvas/recttransform position)

        Vector2 canvasPos;

        Vector2 screenPoint = Camera.main.WorldToScreenPoint(offsetPos);

        // Convert screen position to Canvas / RectTransform space <- leave camera null if Screen Space Overlay

        RectTransformUtility.ScreenPointToLocalPointInRectangle(MainCanvasRect, screenPoint, null, out canvasPos);

        // Set

        imageRectTransform.localPosition = canvasPos;

    }

DrawLine



  // Offset position above object bbox (in world space)

  float offsetPosY = target.transform.position.y + 1.5f;



  // Final position of marker above GO in world space

  Vector3 offsetPos = new Vector3(target.transform.position.x, offsetPosY, target.transform.position.z);



  // Calculate *screen* position (note, not a canvas/recttransform position)

  Vector2 canvasPos;

  Vector2 screenPoint = Camera.main.WorldToScreenPoint(offsetPos);



  // Convert screen position to Canvas / RectTransform space <- leave camera null if Screen Space Overlay

  RectTransformUtility.ScreenPointToLocalPointInRectangle(canvasRect, screenPoint, null, out canvasPos);



  // Set

  markerRtra.localPosition = canvasPos;

ml agent unity 초기 설정방법(anaconda,Window)

1. Unity 설치 (2020.3이상)



2. anaconda 설치



3.가상환경 만들기



- conda create -n MLAgent python =3.7.9





4. 해당 가상환경에 pytorch설치

## pip3 install torch~=1.7.1 -f https://download.pytorch.org/whl/torch_stable.html



![[Pasted image 20221030163156.png]]

5. 해당 가상환경에 mlagent 설치

## python -m pip install mlagents==0.28.0

![[Pasted image 20221030163252.png]]

unity 2d sprite animation



using System.Collections;

using System.Collections.Generic;

using UnityEngine;

using UnityEngine.UI;

using System;

[Serializable]

public struct SpriteInfo

{

    public Image sourceImage;

    public Sprite[] textureArray;

    public float frameRate;



}

public class SpriteAnimation : MonoBehaviour

{

    [SerializeField] SpriteInfo s_Info;

    [SerializeField] float frameTimer;

    [SerializeField] int currentFrame;

    [SerializeField] int frameCount;

    // Start is called before the first frame update

    void Start()

    {



    }

    // Update is called once per frame

    void Update()

    {

        if (Input.GetKeyDown("1"))

        {

            StartCoroutine(StartSprite(s_Info));

        }

    }

    IEnumerator StartSprite(SpriteInfo info)

    {

        frameTimer = info.frameRate;

        frameCount = info.textureArray.Length;

        //Rect rect = new Rect(0, 0, info.textureArray[0].width, info.textureArray[0].height);

        while (true)

        {

            frameTimer -= Time.deltaTime;

            if (frameTimer <= 0f)

            {

                frameTimer += info.frameRate;

                currentFrame = (currentFrame + 1) % frameCount;

                info.sourceImage.sprite = info.textureArray[currentFrame];

                Debug.Log(info.sourceImage.sprite.name);

                //info.sourceImage.sprite = Sprite.Create(info.textureArray[currentFrame],rect,Vector2.zero);

            }

            yield return new WaitForEndOfFrame();

        }

    }

}

2d InfiniteWorld Unity

 GitHub - ToberoCat/InfiniteWorld: This repo shows how to create a infinite chunk based world. The chunks are being created in a layer like way

TryGetComponent Unity



using UnityEngine;

public class TryGetComponentExample : MonoBehaviour

{

    void Start()

    {

        if (TryGetComponent(out HingeJoint hinge))

        {

            hinge.useSpring = false;

        }

    }

}

Unity animation use Slider UI



using System.Collections;

using System.Collections.Generic;

using UnityEngine;

using UnityEngine.UI;

public class AnimationTruck : MonoBehaviour

{

    public Animation ani;

    public string clip_name;

    public float ani_time;

    [Header("Animation Slider")]

    [SerializeField] Slider AnimationSlider;

    [SerializeField] float speed;

    private void Start()

    {

        Hide();

        if (AnimationSlider != null)

        {

            AnimationSlider.maxValue = ani[clip_name].length;



            AnimationSlider.onValueChanged.AddListener(delegate

            { OnChangeAnimationBySlider(AnimationSlider);

            });

        }

    }

    void OnChangeAnimationBySlider(Slider slider)

    {

        if (!ani.isPlaying)

        {

            ani.Play();

            ani[clip_name].speed = 0;

        }

        //ani[clip_name].speed = speed;

        ani[clip_name].time = slider.value;

    }

    public void ToggleAnimation(Toggle m_toggle)

    {

        if (m_toggle.isOn)

        {

            Show();

        }

        else

        {

            Hide();

        }

    }

    private void Update()

    {

        if (AnimationSlider == null)

                return;



            if (AnimationSlider.value != ani[clip_name].time)

            {

                AnimationSlider.value =  ani[clip_name].time;

            }

    }

    public void Hide()

    {

        //if (ani_time == ani[clip_name].length)

        //    return;

        ani_time = ani[clip_name].time;

        func_playAni(ani_time, clip_name);

    }

    public void Show()

    {

        if (ani_time == 0)

            ani_time = ani[clip_name].length;

        else

            ani_time = ani[clip_name].time;

        func_reversPlay(ani_time, clip_name);

    }

    public void func_playAni(float time, string aniName)

    {

        ani[aniName].time = time;

        ani[aniName].speed = speed;

        ani.Play();

    }

    public void func_reversPlay(float time, string aniName)

    {

        ani[aniName].time = time;

        ani[aniName].speed = -speed;

        ani.Play();

    }

}

searchBox.cs



using System.Collections;

using System.Collections.Generic;

using UnityEngine;

using TMPro;

using System;

using System.Linq;

public class SearchDropBoxInit : MonoBehaviour

{

    [SerializeField] TMP_Dropdown dr_car;

    [SerializeField] TMP_Dropdown dr_company;

    [SerializeField] TMP_Dropdown dr_product;

    [SerializeField] SearchDropBoxOpen uic_car;

    [SerializeField] SearchDropBoxOpen uic_company;

    [SerializeField] SearchDropBoxOpen uic_product;

    [SerializeField] TextMeshProUGUI txt_result_car;

    [SerializeField] TextMeshProUGUI txt_result_company;

    [SerializeField] TextMeshProUGUI txt_result_product;

    [Header("Scrollview")]

    [SerializeField] CompanyItemTableViewController m_CompanyItemTableViewController;

    [Header("Search")]

    [SerializeField] TMP_InputField m_TMP_InputField;

    List<CompanyUiItem> originTable;

    // Start is called before the first frame update

    void Start()

    {

        StartCoroutine(InitData());

        StartCoroutine(InitScrollView());

    }

    IEnumerator InitData()

    {

        yield return new WaitUntil(() => LoadPartLinksWebGL.Instance.m_xmlLoadDatas.m_dataCarsXml.data.Count != 0);

        SetFunction_UI(dr_car, LoadPartLinksWebGL.Instance.m_xmlLoadDatas.m_dataCarsXml.data, uic_car, txt_result_car);

        SetFunction_UI(dr_company, LoadPartLinksWebGL.Instance.m_xmlLoadDatas.m_dataCompanysXml.data, uic_company, txt_result_company);

        SetFunction_UI(dr_product, LoadPartLinksWebGL.Instance.m_xmlLoadDatas.m_dataProductsXml.data, uic_product, txt_result_product);

    }

    IEnumerator InitScrollView()

    {

        yield return new WaitUntil(() => LoadPartLinksWebGL.Instance.m_AllProgramPath.links.Count != 0);

        SetScrollview();

        //m_TMP_InputField.onEndEdit.AddListener(ValueChanged);

        m_TMP_InputField.onValueChanged.AddListener(ValueChanged);

    }

    void SetScrollview()

    {

        originTable = new List<CompanyUiItem>();



        foreach (var x in LoadPartLinksWebGL.Instance.m_AllProgramPath.links)

        {

            CompanyUiItem temp = new CompanyUiItem();

            ///회사이름이 없으면 일반씬이므로 컨티뉴

            if (x.Value.companyName == "")

                continue;

            temp.companyName = x.Value.companyName;

            temp.companyType = x.Value.companyType;

            temp.url = x.Value.url;

            temp.products = x.Value.products;

            temp.cars = x.Value.targetCar;

            originTable.Add(temp);

        }

        m_CompanyItemTableViewController.UpdateData(originTable);

    }

    #region 검색

    public List<CompanyUiItem> SearchTableData(string input)

    {

        if (input.Length == 0)

            return originTable;

        input = input.Replace(",", ""); ///따움표는 없는걸로 체크

        Func<CompanyUiItem,bool> condition_car; //검색 조건

        Func<CompanyUiItem, bool> condition_products; //검색 조건

        Func<CompanyUiItem, bool> condition_companyName; //검색 조건

        Func<CompanyUiItem, bool> condition_companyType; //검색 조건



        //Func<CompanyUiItem, object> order; //정렬 기준

        string search = input.ToLower(); //소문자로 변환

        condition_car = item => item.cars.Where(x=> x.ToLower().Contains(search)).Any();

        condition_products = item => item.products.Where(x => x.ToLower().Contains(search)).Any();

        condition_companyName = item => item.companyName.ToLower().Contains(search);

        condition_companyType = item => item.companyType.ToLower().Contains(search);



        IEnumerable<CompanyUiItem> result_car;

        IEnumerable<CompanyUiItem> result_products;

        IEnumerable<CompanyUiItem> result_company;

        IEnumerable<CompanyUiItem> result_type;

        result_car = originTable.Where(condition_car);

        result_products = originTable.Where(condition_products);

        result_company = originTable.Where(condition_companyName);

        result_type = originTable.Where(condition_companyType);

        //result = originTable.Where(condition_car).Where(condition_companyName).Where(condition_companyType).Where(condition_products);

        result_car = result_car.Select(x => new CompanyUiItem

        {

            companyName = x.companyName,

            companyType = x.companyType,

            cars = x.cars,

            products = x.products,

            url = x.url,

        });

        result_products = result_products.Select(x => new CompanyUiItem

        {

            companyName = x.companyName,

            companyType = x.companyType,

            cars = x.cars,

            products = x.products,

            url = x.url,

        });

        result_company = result_company.Select(x => new CompanyUiItem

        {

            companyName = x.companyName,

            companyType = x.companyType,

            cars = x.cars,

            products = x.products,

            url = x.url,

        });

        result_type = result_type.Select(x => new CompanyUiItem

        {

            companyName = x.companyName,

            companyType = x.companyType,

            cars = x.cars,

            products = x.products,

            url = x.url,

        });

        IEnumerable<CompanyUiItem> result  =

            new[] { result_car, result_products, result_company, result_type }.

            Where(x=>x!=null).

            SelectMany(x => x).

            Distinct();

        return result.ToList();

    }

    void ValueChanged(string text)

    {

        string[] texts = text.Split(",");

        if (texts.Length == 0)

        {

            m_CompanyItemTableViewController.UpdateData(SearchTableData(text));

        }

        else

        {

            List<CompanyUiItem> result = new List<CompanyUiItem>();

            foreach (var x in texts)

                result.AddRange(SearchTableData(x));

            m_CompanyItemTableViewController.UpdateData(result);

        }

    }

    #endregion

    #region 드롭다운

    private void SetFunction_UI(TMP_Dropdown dropdown,List<string> data, SearchDropBoxOpen uic,TextMeshProUGUI result)

    {

        //Reset

        ResetFunction_UI(dropdown, data);

        // Set Default Value

        result.text = dropdown.options[dropdown.value].text;

        dropdown.onValueChanged.AddListener(delegate {

            Function_Dropdown(dropdown, uic, result);

        });

    }

    //private void Function_Button()

    //{

    //    string op = dropdown.options[dropdown.value].text;

    //    result.text = op;

    //    result_img.sprite = dropdown.options[dropdown.value].image;

    //    Debug.LogError("Dropdown Result!\n" + op);

    //}

    private void Function_Dropdown(TMP_Dropdown select, SearchDropBoxOpen uic, TextMeshProUGUI result)

    {

        string op = select.options[select.value].text;

        //message.text = op;

        Debug.Log("Dropdown Change!\n" + op);

        result.text = op;

        uic.Hide();

    }

    private void ResetFunction_UI(TMP_Dropdown dropdown,List<string> data)

    {



        dropdown.onValueChanged.RemoveAllListeners();

        dropdown.options.Clear();

        for (int i = 0; i < data.Count; i++)

        {

            int idx = i;

            TMP_Dropdown.OptionData newData = new TMP_Dropdown.OptionData();

            newData.text = data[idx];

            //newData.image = sprites[i];

            dropdown.options.Add(newData);

        }

        dropdown.SetValueWithoutNotify(-1);

        dropdown.SetValueWithoutNotify(0);

    }

    #endregion

}

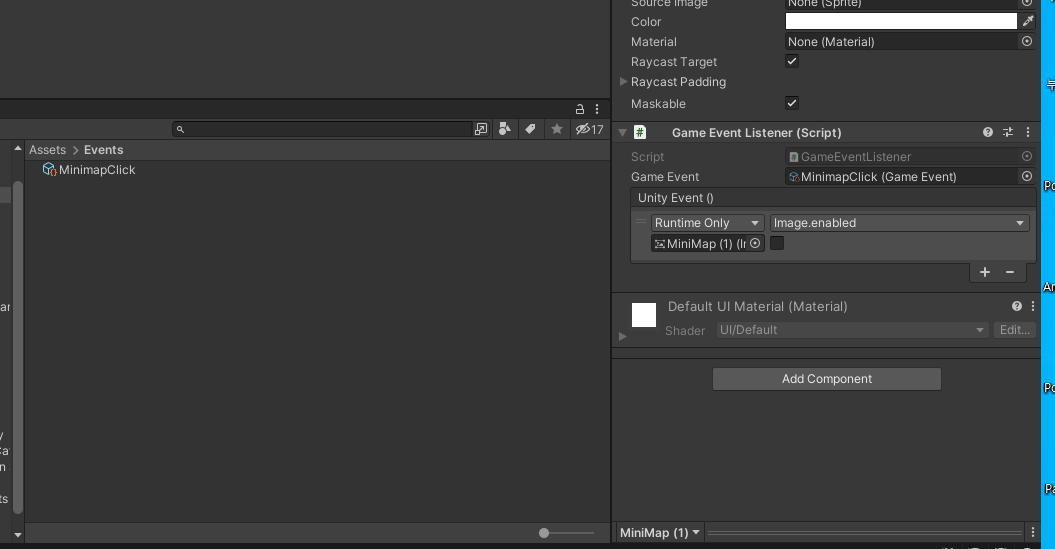

Game Event (Unity,ScriptableObject)



https://drive.google.com/file/d/1wYwdK6P3bS1nzN_WYtdIq2Bg0gGmYY1o/view?usp=sharing

################### 간단한 INVOKE 코드

using System.Collections;

using System.Collections.Generic;

using UnityEngine;

using UnityEngine.EventSystems;

public class ClickTheMinimap : MonoBehaviour,IPointerClickHandler

{

    [SerializeField] GameEvent _onClickMinimap;

    public void OnPointerClick(PointerEventData eventData)

    {

        _onClickMinimap.Invoke();

    }

}

################### 간단한 INVOKE 코드

################### 스크립터블 오브젝트

using System.Collections;

using System.Collections.Generic;

using UnityEngine;

[CreateAssetMenu(menuName ="Game Event",fileName="new Game Event")]

public class GameEvent : ScriptableObject

{

    /// <summary>

    /// HashSet 을 사용하면 중복을 피할수 있다

    /// </summary>

    HashSet<GameEventListener> _listeners = new HashSet<GameEventListener>();

    // Start is called before the first frame update

    public void Invoke()

    {

        foreach (var globalEventListener in _listeners)

            globalEventListener.RaiseEvent();

    }

    public void Register(GameEventListener gameEventListener) => _listeners.Add(gameEventListener);

    public void DeRegister(GameEventListener gameEventListener) => _listeners.Remove(gameEventListener);

}

################### 스크립터블 오브젝트





################### GameEventListener

using UnityEngine;

using UnityEngine.Events;

public class GameEventListener : MonoBehaviour

{

    [SerializeField] protected GameEvent _gameEvent;

    [SerializeField] protected UnityEvent _unityEvent;

    private void Awake()

    {

        _gameEvent.Register(gameEventListener: this);

    }

    private void OnDestroy()

    {

        _gameEvent.DeRegister(gameEventListener: this);

    }

    public virtual void RaiseEvent() => _unityEvent.Invoke();

}

################### GameEventListener





################### GameEventListener 변형버전

using System.Collections;

using UnityEngine;

using UnityEngine.Events ;

public class GameEventListenerWithDelay : GameEventListener

{

    [SerializeField] float _delay = 1f;

    [SerializeField] UnityEvent _delayedUnityEvent;

    public override void RaiseEvent()

    {

        _unityEvent.Invoke();

        StartCoroutine(RunDelayedEvent());

    }

    IEnumerator RunDelayedEvent()

    {

        yield return new WaitForSeconds(_delay);

        _delayedUnityEvent.Invoke();

    }

}

################### GameEventListener 변형버전

   GameEvent 생성 -> 스크립터블 오브젝트라 생성해놓고 사용하면 된다.

EventListner 등록해놓고 원하는 GameEvent를 등록

invoke하면

각자 등록된 UnityEvent를 실행

git upload



git 업로드

서버와 다를상황(로컬에서 작업했을때)

git add .

git commit -m

git push 에서 에러남

에러가 난다(서버의 변경사항이 있다)

일단 커밋을 취소하고 stash해야함

git reset --soft HEAD^

git stash

git pull

git stash pop

여기서 충돌이 있으면 pop에서도 에러가 남

pop에러가나면

git reset HEAD origin/master

풀어준다음

git add . 아니면 git add [file]

그리고 git status 확인해주고

다시 commit하고 push 해주면 됨

git commit -m "변경이력저장"

git push -u origin master

unity mouse on ui



public bool IsPointerOverUIElement()

    {

        return IsPointerOverUIElement(GetEventSystemRaycastResults());

    }

    private bool IsPointerOverUIElement(List<RaycastResult> eventSystemRaysastResults)

    {

        for (int index = 0; index < eventSystemRaysastResults.Count; index++)

        {

            RaycastResult curRaysastResult = eventSystemRaysastResults[index];

            if (curRaysastResult.gameObject.layer == 5)

                return true;

        }

        return false;

    }

    static List<RaycastResult> GetEventSystemRaycastResults()

    {

        PointerEventData eventData = new PointerEventData(EventSystem.current);

        eventData.position = Input.mousePosition;

        List<RaycastResult> raysastResults = new List<RaycastResult>();

        EventSystem.current.RaycastAll(eventData, raysastResults);

        return raysastResults;

    }

    void Update()

    {

        if (!PlayerCam.gameObject.activeSelf)

            return;

        if (IsPointerOverUIElement())

        {

            HidePointObject();

            return;

        }

클릭했을때 체크라서 땟을때(MouseUP)는 또 변수가 하나 더 필요하다

 if (IsPointerOverUIElement())

        {

            isOnUi = true;

            HidePointObject();

            return;

        }



        if (Input.GetMouseButton(0))

        {

            ///현재 부딛힌 객체 확인하기

            isOnUi = false;

            if (Physics.Raycast(Camera.main.ScreenPointToRay(Input.mousePosition), out hit))

            {

                //Debug.Log("tag:" + hit.transform.tag);

                if (hit.transform.tag == "ClickableFloor")

                {

                    ShowPointObject();

                    if (PointObject.activeSelf)

                    {

                        PointObject.transform.position = new Vector3(hit.point.x, Player.transform.position.y+1.2f, hit.point.z); ;

                    }

                }

                else

                {

                    HidePointObject();

                }

            }

        }

        if (Input.GetMouseButtonUp(0) && !isOnUi)

        {

            if (Physics.Raycast(Camera.main.ScreenPointToRay(Input.mousePosition), out hit))

            {

                if (hit.transform.tag == "ClickableFloor")

                {

                    isOnUi=false;

                    PlayerSmoothMove(new Vector3(PointObject.transform.position.x, Player.transform.position.y, PointObject.transform.position.z));

                }

            }

        }

fade 효과



using System.Collections;

using System.Collections.Generic;

using UnityEngine;

using UnityEngine.UI;

public class CilckMoveFade : MonoBehaviour

{

    public float animTime = 0.5f;         // Fade 애니메이션 재생 시간 (단위:초).

    public Image fadeImage;            // UGUI의 Image컴포넌트 참조 변수.

    void Awake()

    {

        // Image 컴포넌트를 검색해서 참조 변수 값 설정.



    }

    public void FadeIn(float fadeOutTime, System.Action nextEvent = null)

    {

        StartCoroutine(CoFadeIn(fadeOutTime, nextEvent));

    }

    public void FadeOut(System.Action nextEvent = null)

    {

        StartCoroutine(CoFadeOut(animTime, nextEvent));

    }

    // 투명 -> 불투명

    IEnumerator CoFadeIn(float fadeOutTime, System.Action nextEvent = null)

    {



        Color tempColor = fadeImage.color;

        while (tempColor.a < 1f)

        {

            tempColor.a += Time.deltaTime / fadeOutTime;

            fadeImage.color = tempColor;

            if (tempColor.a >= 1f) tempColor.a = 1f;

            yield return null;

        }

        fadeImage.color = tempColor;

        if (nextEvent != null) nextEvent();

    }

    // 불투명 -> 투명

    IEnumerator CoFadeOut(float fadeOutTime, System.Action nextEvent = null)

    {



        Color tempColor = fadeImage.color;

        tempColor.a = 1;///불투명으로 설정

        while (tempColor.a > 0f)

        {

            tempColor.a -= Time.deltaTime / fadeOutTime;

            fadeImage.color = tempColor;

            if (tempColor.a <= 0f) tempColor.a = 0f;

            yield return null;

        }

        fadeImage.color = tempColor;

        if (nextEvent != null) nextEvent();

    }

}

unity tts



using System.Collections;

using System.Collections.Generic;

using UnityEngine;

public class tts : MonoBehaviour

{

    public AudioSource audioSource;

    // Start is called before the first frame update

    void Start()

    {

        audioSource = gameObject.GetComponent<AudioSource>();

        StartCoroutine(DownloadTheAudio());

    }

    IEnumerator DownloadTheAudio()

    {

// SampleText 에 원하는 글 넣으면 됨

// En-gb 한국어로 하고싶으면 Ko-gb 하니까 됨

        string url = "https://translate.google.com/translate_tts?ie=UTF-8&total=1&idx=0&textlen=32&client=tw-ob&q=SampleText&tl=En-gb";

        WWW www = new WWW(url);

        yield return www;

        audioSource.clip = www.GetAudioClip(false,true, AudioType.MPEG);

        audioSource.Play();

    }

}

unity array get next prev index



Clamp를 사용하면 원하는 값을 딱 얻을 수 있네

    설명

Clamps a value between a minimum float and maximum float value.

using UnityEngine;

using System.Collections;

public class ExampleClass : MonoBehaviour {

    void Update() {

        transform.position = new Vector3(Mathf.Clamp(Time.time, 1.0F, 3.0F), 0, 0);

    }

}

public static int Clamp (int value, int min, int max);

설명

Clamps value between min and max and returns value.

// Clamps the value 10 to be between 1 and 3.

// prints 3 to the console

Debug.Log(Mathf.Clamp(10, 1, 3));

무한루프

 public void Next_Color()

    {

        if (currnetIndex + 1 == color_materials.Length)

            currnetIndex = 0;

        else

            currnetIndex = Mathf.Clamp(currnetIndex + 1, 0, color_materials.Length- 1);

        SetObjectColor(color_materials[currnetIndex]);

    }

    public void Prev_Color()

    {

        if (currnetIndex-1 == -1)

            currnetIndex = color_materials.Length - 1;

        else

            currnetIndex = Mathf.Clamp(currnetIndex - 1, 0, color_materials.Length - 1);

        SetObjectColor(color_materials[currnetIndex]);

    }

예제

public void Prev_Help()

    {

        currnetIdx = Mathf.Clamp(currnetIdx - 1, 0, helpDatas.helperInfos.Count-1);

        tts.Instance.SpeechStop();

        HelperInfo result = helpDatas.helperInfos[currnetIdx];

        StartDroneMove(result.move, result.rotate);

        tts.Instance.Speech(result.txt_tts);



    }

    public void Next_Help()

    {

        currnetIdx = Mathf.Clamp(currnetIdx + 1, 0, helpDatas.helperInfos.Count-1);



        tts.Instance.SpeechStop();

        HelperInfo result = helpDatas.helperInfos[currnetIdx];

        StartDroneMove(result.move,result.rotate);

        tts.Instance.Speech(result.txt_tts);





    }
